During remote support, it may be necessary to access the interior of your interactiveSQUASH system - for example, to check a connection or replace a component. Here is how to do that.

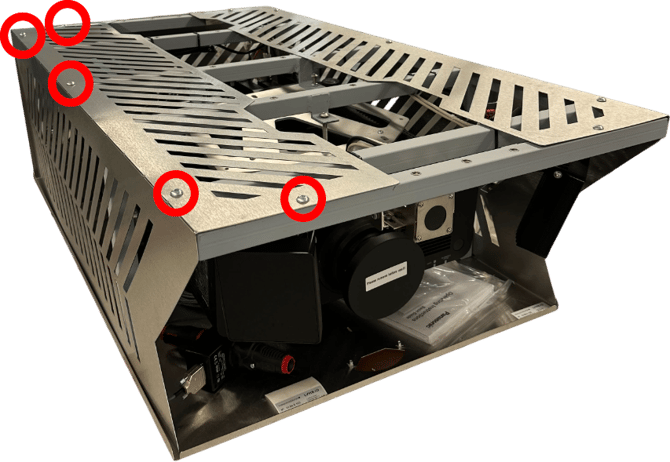

Remove the screws
You will find five screws (hexagon socket, T30) on top of the system - remove them. The cover will remain in place, as it is held by a small fold at the bottom.

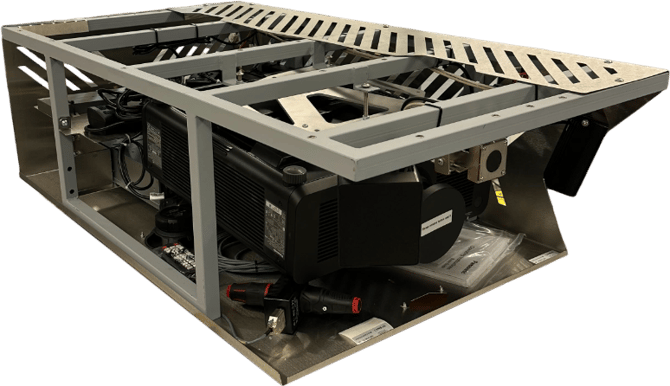

Remove the cover
Slightly lift the cover out of the fold and put it aside. Now you can access the inner of your interactiveSQUASH system.
