MultiBall LED - Transfer Calibration (after replacing Panels)

After replacing LED panels with panels from the same batch, you have to inform the electronics about the new panel. Here is how to do that

Connect Novastar and your Computer

Please follow this article here to connect your Novastar to your Computer first.

Calibration Mode

Every LED panel has configuration information stored on it and all panels of one batch are calibrated to the same reference. Whenever you replace a panel with another from the same batch (same delivery), you can simply inform the electronics about the new panel and it will perfectly integrate.

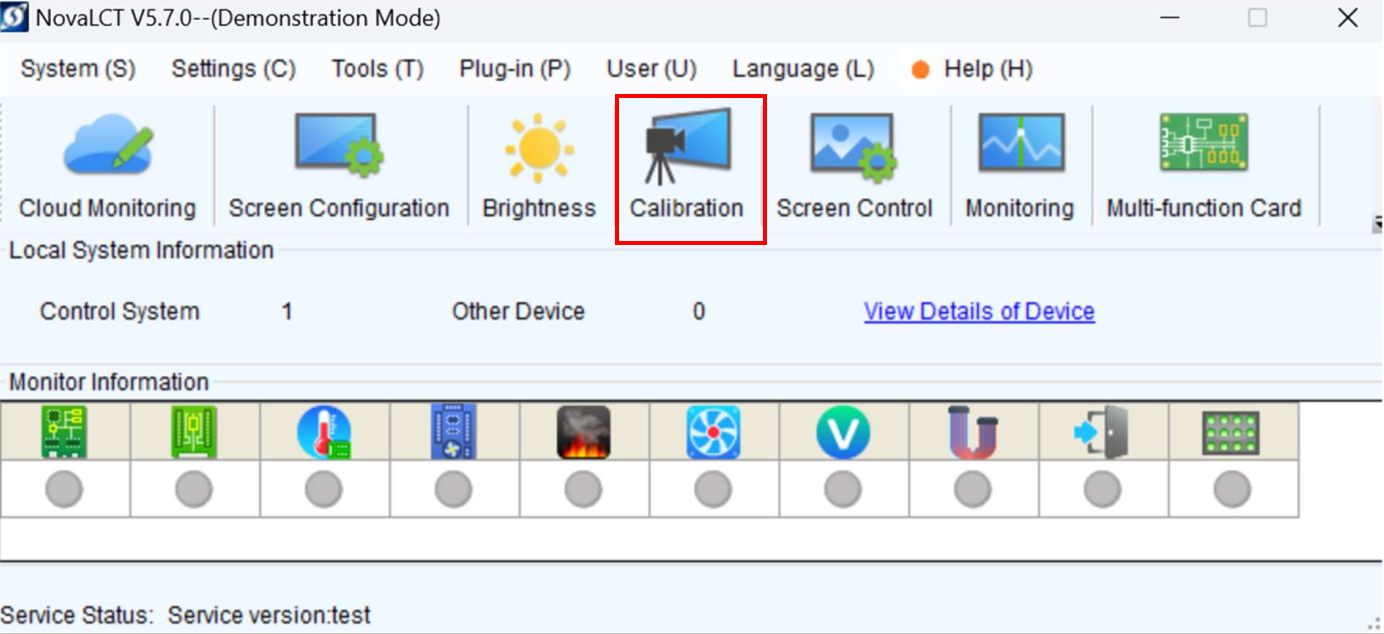

  • Click on Calibration to enter the calibration mode

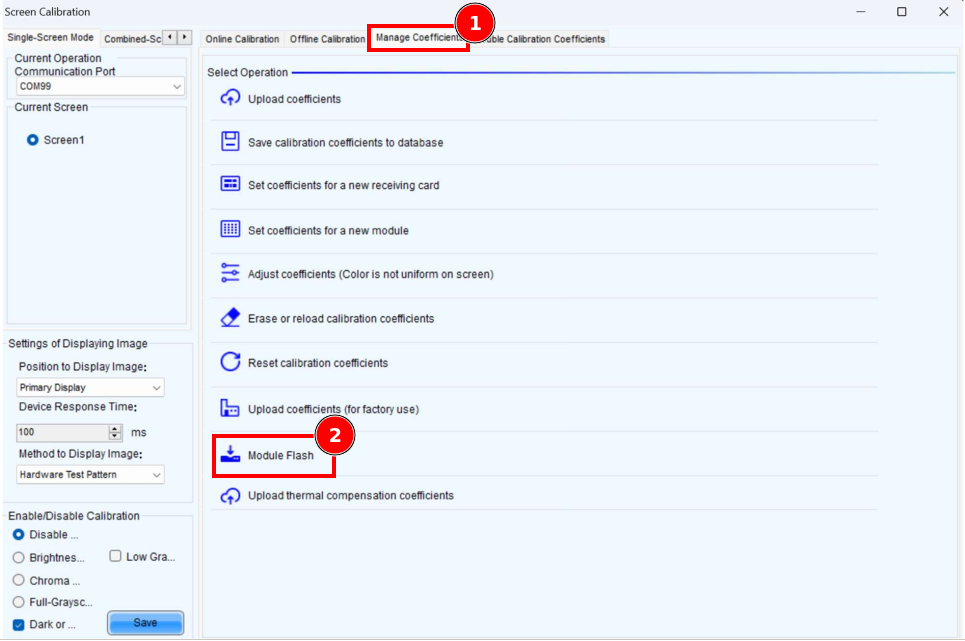

  • Select the tab Manage Coefficients and select the option Module Flash

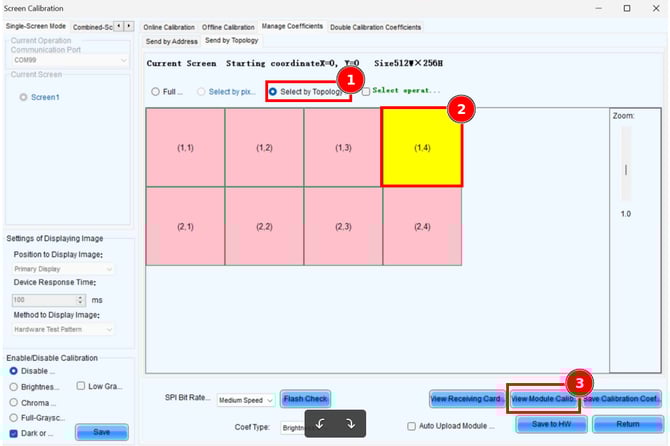

  • Click on Select by Topology... select the LED panel that you've replaced by clicking on it. Click View Module Calibration

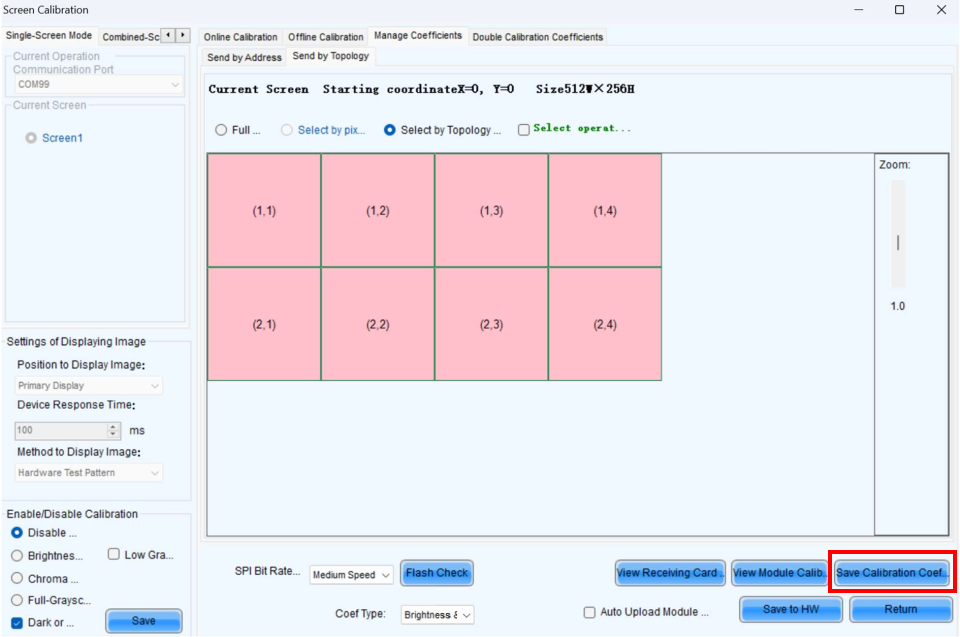

  • Select Save Calibration Coefficients

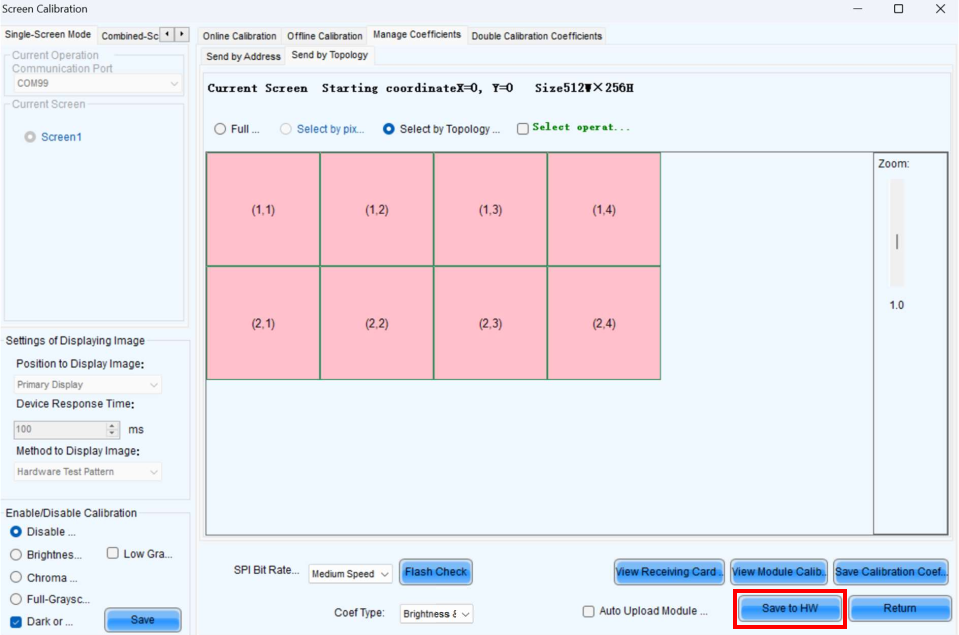

  • Click Save to HW to transfer the calibration data to the so-called receiving card
