MultiBall LED - Screen Wiring

How to wire the LED screens of your MultiBall system

MultiBall Club

Generation 3

  • Panel Type: UGM
  • Power Consumption:
    • 104W (max), 35W (avr) per Panel
    • 5x 832 W (max), 256 W (avg) overall

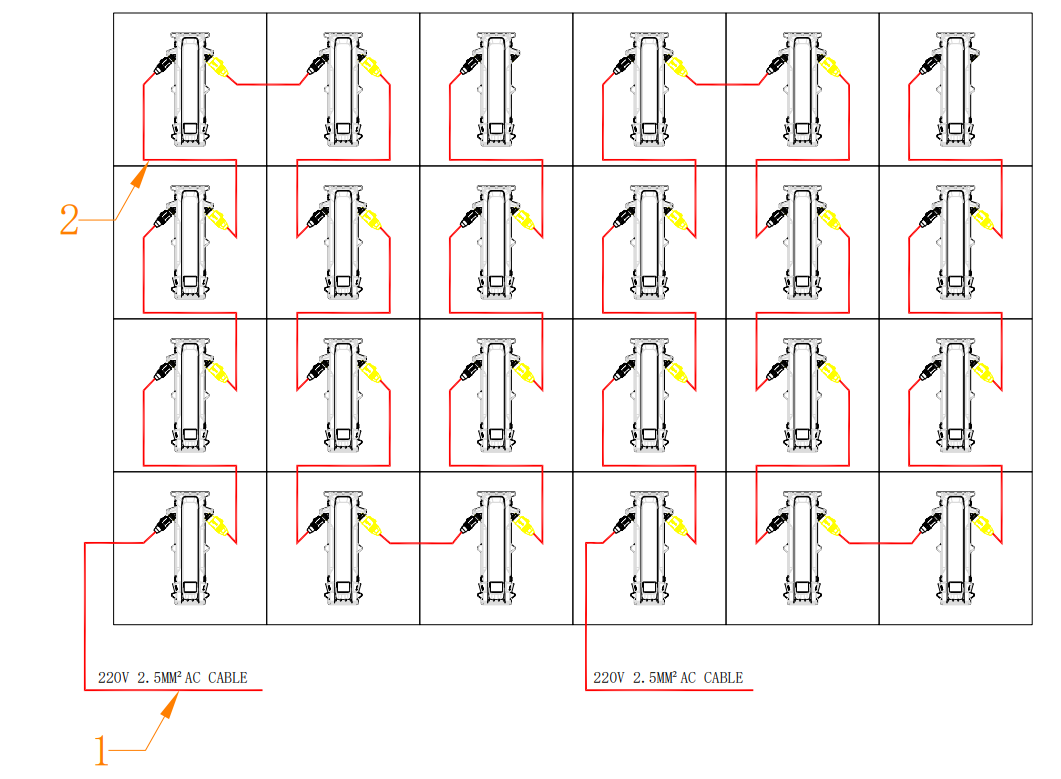

Power Cabling

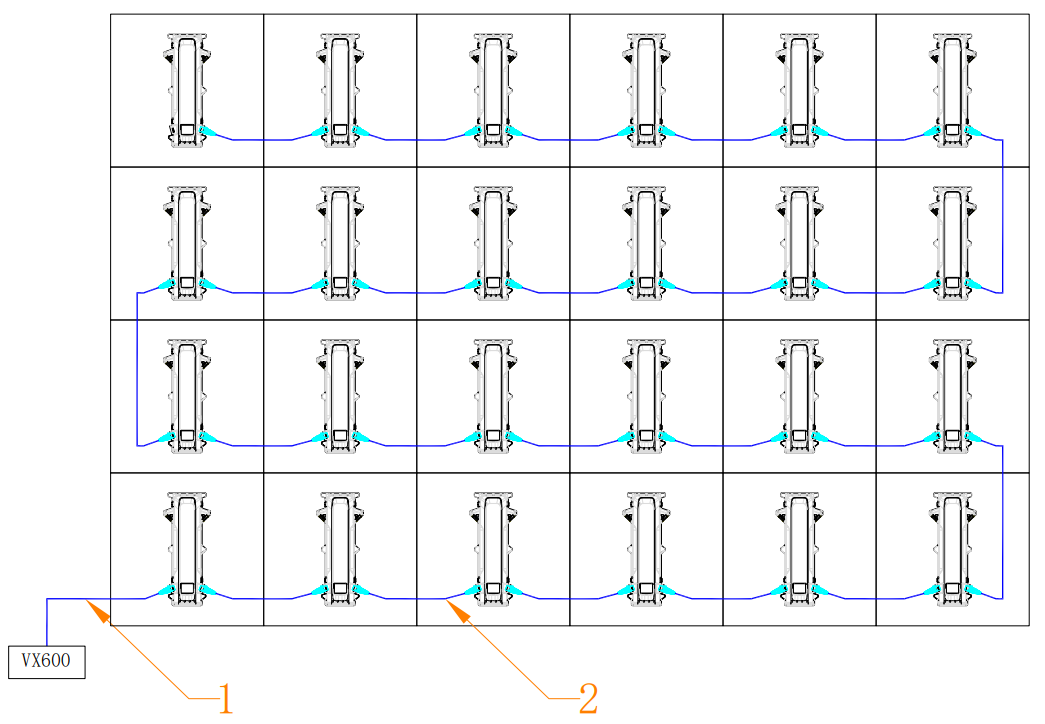

Signal Cabling



MultiBall Mini

Generation 4.1

  • Panel Type: EA
  • Power Consumption:
    • 120W (max), 40W (avr) per Panel
    • 5x 1440 W (max), 480 W (avg) overall

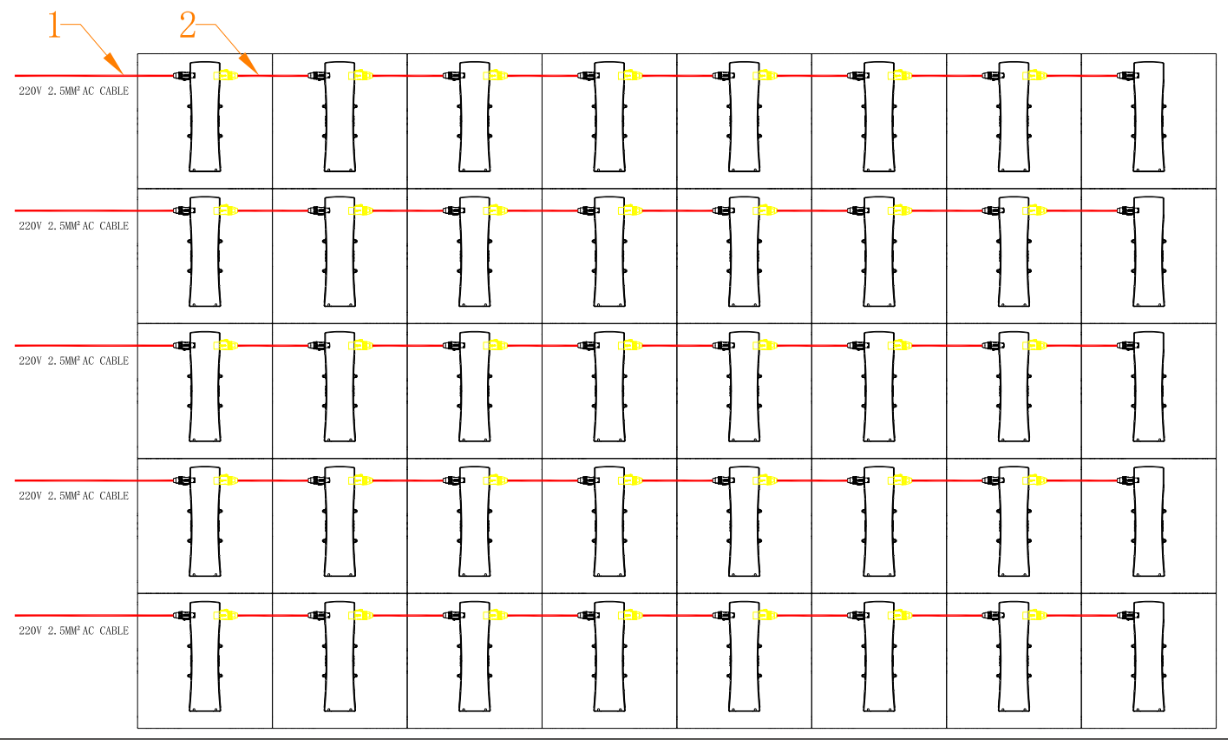

Power Cabling

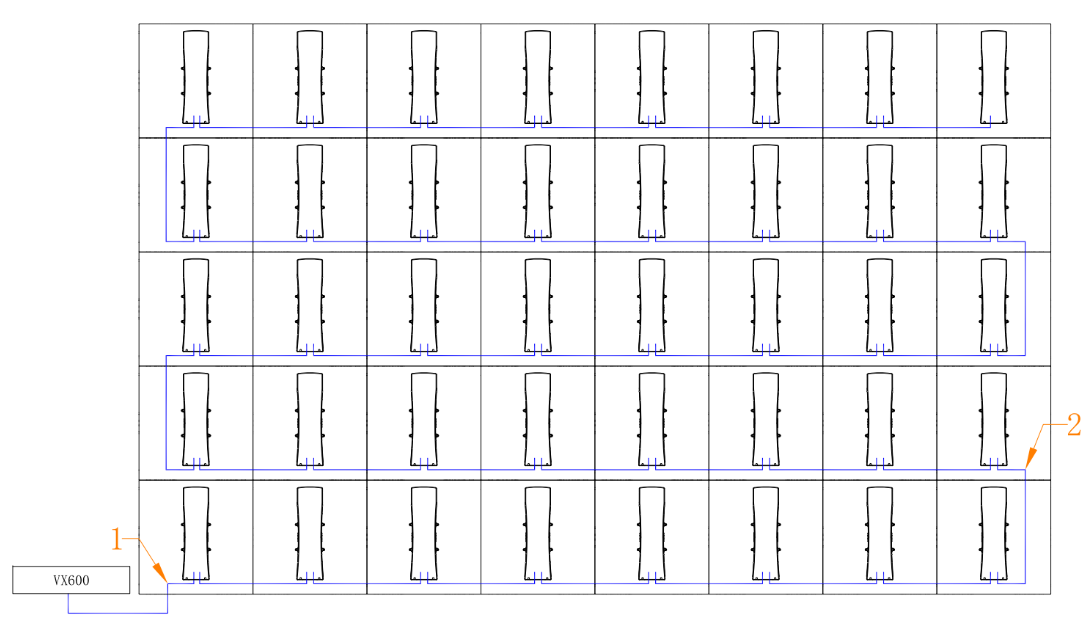

Signal Cabling
