interactiveSQUASH - Replace a controller

How to correctly replace a controller

You have received a new controller from us? Here is how to replace it!

1. Remove the tin cover that enclosures the broken controller

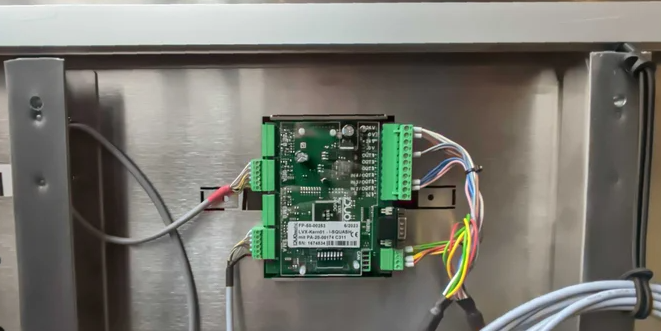

2. Remove the broken controller
   1. Unplug the big green connector in the upper right first
   2. Unplug all other connectors (two on the left side, one on the right)
   3. Slide out the controller

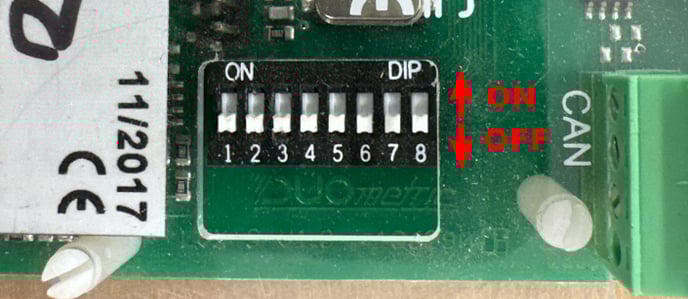

3. Remember the position of the little white DIP switches (1-3) and transfer their ON/OFF position to the new controller

4. Additionally, bring DIP switch 3 to its ON position (to start the calibration as soon as the controller gets powered)
5. Install the new controller
   1. Slide in the controller
   2. Plug in all connectors except the big green one
   3. Plug in the big green connector (power on the controller)
6. Bring DIP switch 3 to its OFF position (which ends calibration)
