As a smart device, your system requires a working internet connection.
The system establishes an outbound connection to our servers. This connection serves various purposes, including controlling the system with the admin platform, communication with the ranking system, enabling us to provide remote support and perform necessary updates when required.
DHCP Settings
Your network has to be configured to automatically assign an IPv4 address to your device (DHCP). Assigning a static IP on the machine directly by yourself, our partners or LYMB.iO is unfortunately not possible.
Firewall Settings
Besides the physical connection to the internet, it's essential to have the required ports open for outbound connections and allow access to a set of domains.
The client's security impact is minimal as long as these ports remain closed for inbound traffic and other devices.
Ports & Domains
Please tell your IT department to open the following ports
| Port | Type | Direction | Destination | Service |
| 22 | TCP | outbound | git.funwithballs.com (3.123.122.203) tunnel.courtadmin.net (3.64.218.58) |
SSH |
| 53 | UDP TCP |
outbound | 8.8.8.8 8.8.4.4 |
DNS |
| 123 | UDP TCP |
outbound | ntp.ubuntu.com | NTP |
| 80 | TCP | outbound | *.ubuntu.com *.s3.amazonaws.com |
HTTP |
| 443 | TCP | outbound | *.multiball-admin.net *.courtadmin.net *.lymb-admin.net *.s3.amazonaws.com *.ubuntu.com |
HTTPS |
| 1194 | UDP | outbound | vpn.courtadmin.net (52.59.113.67) | VPN |
MAC Address

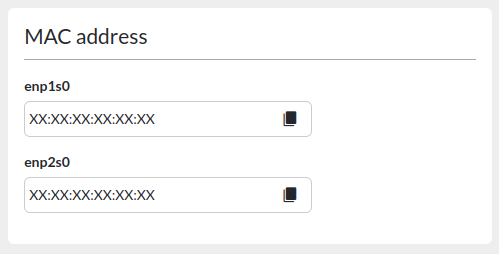

Your IT department may need the system's MAC address before they can allow the system any internet access. You will find the addresses of both ports in your admin page under Systems > [ edit ] > Network
WiFi
Neither MultiBall nor interactiveSQUASH includes a wireless network adapter. However, you can still connect them to WiFi using a separate LAN to WiFi device (such as a bridge or repeater with a LAN port). Place the device near your MultiBall or interactiveSQUASH and connect your system to it using a LAN cable.
Please note that this device is not included and must be purchased separately by the customer. Your local network specialist can assist you with setting this up.
Internet Speed and Traffic Limits
To ensure your system updates quickly and reliably, we recommend having a minimum download speed of 20 Mbps and a minimum upload speed of 5 Mbps. It's also advisable to opt for an unlimited contract to avoid traffic limits.
